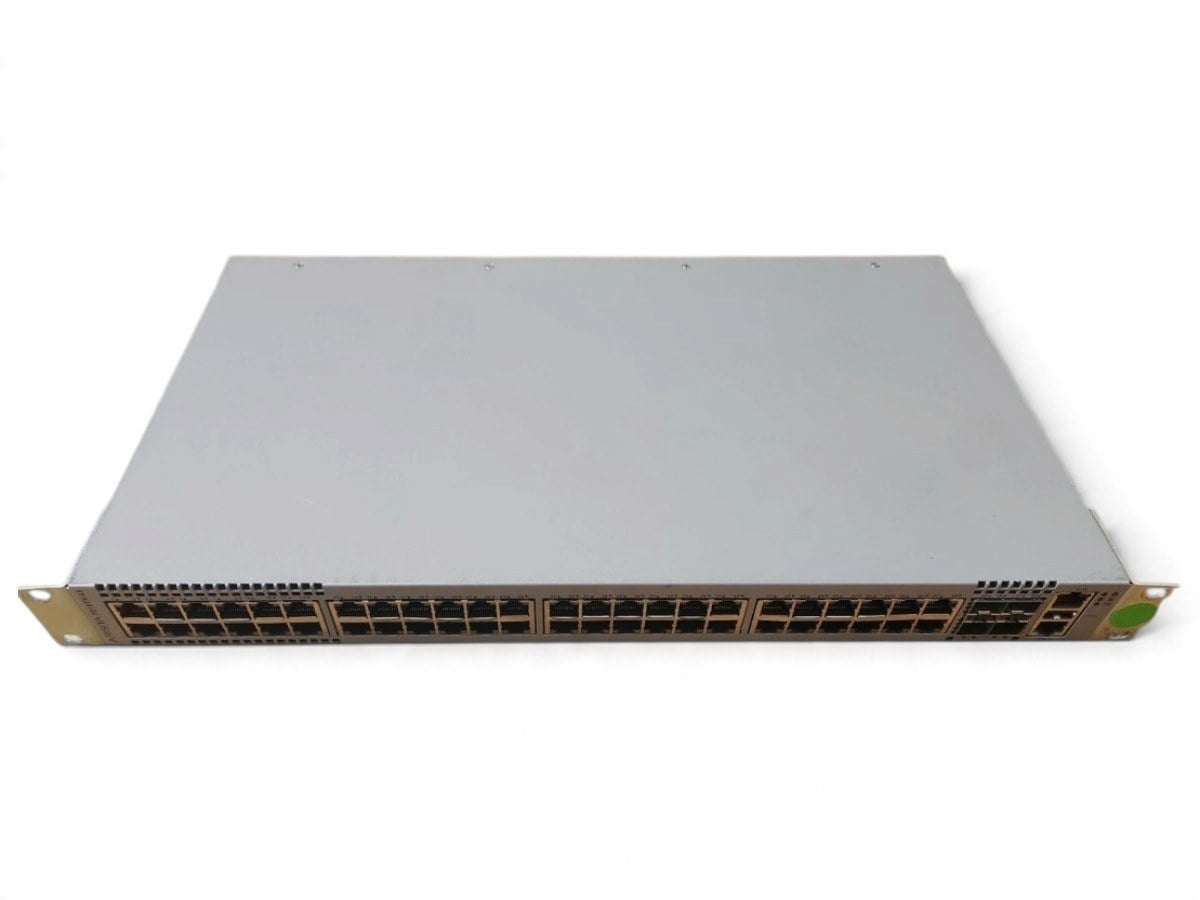

The DCS-7010TX-48-F is a 1 RU, 48-port 1GbE RJ45 switch with four 25GbE SFP uplinks for 1G server edge and out-of-band management networks. It is part of the Arista 7010X Series and delivers 296 Gbps of throughput at 220 Mpps with front-to-rear airflow.
Key Specifications
Ports: 48 x 10/100/1000 RJ45 and 4 x 1/10/25GbE SFP
Maximum density: 52 x 1GbE; 4 x 10GbE or 4 x 25GbE uplinks
Throughput: 296 Gbps / 220 Mpps
Latency: from 2.8 microseconds
CPU / memory: Dual-core x86, 4 GB system memory
Storage: 8 GB flash
Packet buffer: 4 MB
Power draw: 61 W typical / 80 W maximum
Power supplies: 2 x AC (1+1 redundant, hot-swappable)
Cooling: hot-swappable fans
Airflow: front-to-rear (port side intake, power supply side exhaust)
Dimensions (WxHxD): 17.3 x 1.71 x 10.8 in (43.9 x 4.35 x 27.6 cm); 1 RU
Weight: 8.6 lbs (3.9 kg)
Deployment Scenarios
Out-of-band management: 48 copper 1GbE ports for console servers, BMC/IPMI and management interfaces, with 25GbE uplinks to the core
1G server edge: a top-of-rack leaf for 1GbE servers in leaf and spine designs
Layer 2 and Layer 3 leaf: wire-speed L2/L3 forwarding with VXLAN routing and bridging and BGP EVPN, 64K MAC addresses
Choosing Among the Variants
The 7010TX-48 has 4 GB of system memory; the 7010TX-48C has 8 GB. Both are offered in front-to-rear (-F) and rear-to-front (-R) airflow, and in DC-powered versions.
Frequently Asked Questions
What ports does the DCS-7010TX-48-F have?
The DCS-7010TX-48-F provides 48 x 10/100/1000 RJ45 and 4 x 1/10/25GbE SFP. Maximum density is 52 x 1GbE; 4 x 10GbE or 4 x 25GbE uplinks.
What airflow direction is the DCS-7010TX-48-F?
The -F suffix means front-to-rear airflow. The DCS-7010TX-48-R is the same switch with rear-to-front airflow.
How much power does the DCS-7010TX-48-F draw?
Arista lists 61 W typical / 80 W maximum, with 2 x AC (1+1 redundant, hot-swappable) power supplies.
What is the difference between the 7010TX-48 and 7010TX-48C?
The 7010TX-48 has 4 GB of system memory and the 7010TX-48C has 8 GB. Port layout, throughput and dimensions are the same.
BrightStar Systems supplies professionally tested refurbished Arista 7010X Series hardware. Every unit is inspected, tested on original-spec firmware, factory reset, and configuration wiped before shipment, and backed by our standard warranty. Request a quote for current availability and pricing. Specifications are from the Arista 7010X Series data sheet (August 20, 2025, doc 03-0052-14).
SPECIFICATIONS
Model: DCS-7010TX-48-F
Platform: Arista 7010X Series
Ports: 48 x 10/100/1000 RJ45 and 4 x 1/10/25GbE SFP
Throughput: 296 Gbps / 220 Mpps
Memory: 4 GB | Packet buffer: 4 MB
Rack units: 1 | Airflow: front-to-rear
Power: 61 W typical / 80 W maximum
INCLUDED
Model: DCS-7010TX-48-F
Platform: Arista 7010X Series
Ports: 48 x 10/100/1000 RJ45 and 4 x 1/10/25GbE SFP
Throughput: 296 Gbps / 220 Mpps
Memory: 4 GB | Packet buffer: 4 MB
WARRANTY
1-Year BrightStar warranty for end user customers
90-Day BrightStar Warranty for resellers
SHIPPING
Free FedEx Ground shipping within the United States
FedEx Overnight shipping available as well
FedEx International Shipping available for customers outside of the United States
