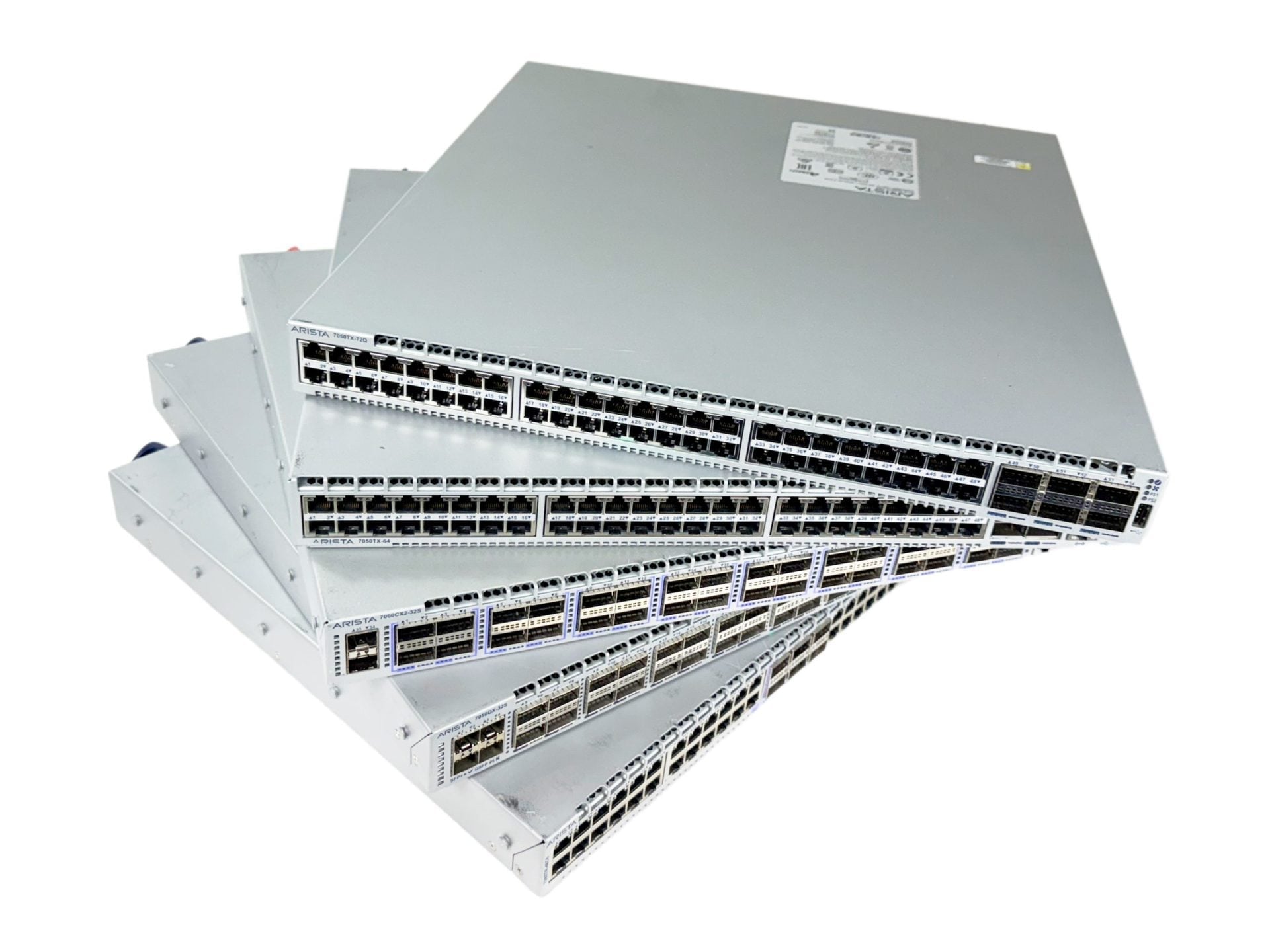

Arista CCS-720XP-24Y6-F Switch

Arista CCS-720XP-24Y6-F — 24-Port GbE PoE Campus Switch with 25G Uplinks and Forward Airflow

Key Features at a Glance

• 24 × 10/100M-1GbE RJ45 PoE ports with 802.3af/at support delivering up to 30W per port
• 6 × 25GbE SFP28 uplink ports for high-bandwidth connections to campus spine or distribution switches
• 174 Gbps (348 Gbps FDX) non-blocking switching capacity — wire speed across all ports simultaneously
• 259 Mpps forwarding rate for consistent performance under all traffic conditions
• 1.2 µs cut-through latency for low-latency campus connectivity
• Up to 583W default PoE budget (typical load with 1 × 650W PSU) — expandable to 1,876W with dual 1050W power supplies
• Front-to-rear airflow (“-F”) for standard campus wiring closet deployments
• N+1 redundant, field-replaceable fans and optional redundant power supplies for high availability
• Full L2/L3 feature set: VXLAN, EVPN, MLAG, ECMP, BGP, OSPF, and advanced routing
• Rich telemetry: FlowTracker (IPFIX), sFlow, LANZ, and streaming telemetry via gRPC/gNMI
• Runs Arista EOS® — the same single binary image used across all Arista platforms — with CloudVision® integration

Right-Sized GbE Access for Smaller Closets and Branch Offices

Cognitive Campus Intelligence: FlowTracker and Device Fingerprinting

PoE Power for the Modern Campus

• Dual 650W AC: 1,136W / 1,113W PoE (typical/minimum)
• Dual 1050W AC: 1,876W / 1,853W PoE (typical/minimum)
• Dual 500W DC: 883W / 860W PoE (typical/minimum)
• Dual 700W DC: 1,228W / 1,205W PoE (typical/minimum)

25GbE Uplinks for Campus Spine Connectivity

Campus Segmentation: VXLAN, EVPN, and 802.1X

• 802.1X and RADIUS: Industry-standard authentication with interoperability across leading NAC solutions, including multi-host 802.1X and MAC-based authentication (MAB)
• Dynamic VLAN Assignment: Automatically segment authenticated users and devices into assigned 802.1Q VLANs
• VXLAN Overlay: Support for up to 16.7 million VXLAN networks with CVX and EVPN control plane, enabling data center-class virtualization at the campus edge
• EVPN Type 2/5: BGP-based control plane for distributed MAC/IP learning and campus-to-data-center fabric integration
• Wire-Speed L3 VRF Segmentation: Hardware-accelerated VRF for isolating traffic between departments, guest networks, and IoT segments
• WiFi Segmentation: Hardware-based VXLAN de-encapsulation of tunneled WiFi traffic for unified wired/wireless policy enforcement

Customizable Topologies: MLAG, ECMP, and Dynamic Load Balancing

Telemetry, Monitoring, and Real-Time Insight

• FlowTracker (IPFIX): Hardware-accelerated flow monitoring to inventory devices and monitor conversations — over 1,000 concurrent flows with scalability to 32K
• sFlow: Continuous traffic sampling for network visibility, capacity planning, and anomaly detection
• LANZ (Latency Analyzer): Per-port queue depth visibility and microburst detection for diagnosing congestion events
• Streaming Telemetry: Real-time state export via open gRPC/gNMI APIs used in OpenConfig for custom management tools
• CloudVision Device Analyzer: Baselines real-time traffic to alert administrators of performance or security outliers

EOS Automation and Extensibility

• Native on-box Python, Bash, C++, and Go scripting via the Linux shell
• JSON-RPC eAPI for programmatic configuration — integrates with Ansible, Terraform, and popular DevOps toolsets
• CloudVision® for centralized configuration management, zero-touch provisioning, and change control across campus and data center
• OpenConfig and gNMI/gRPC for model-driven management and streaming state export
• Zero-Touch Provisioning (ZTP) for fully automated day-0 configuration of new access switches
• Smart System Upgrade (SSU) for in-service software upgrades and hitless patching

Front-to-Rear Airflow and Campus Deployment

• Campus wiring closets and IDF locations with front-facing equipment
• Branch office and retail network cabinets with limited space
• Traditional campus environments following standard thermal management practices

Hardware Specifications

• Form Factor: 1RU — 17.3 × 1.75 × 12.5 inches (44.0 × 4.4 × 31.75 cm)
• Weight: 13.3 lbs (6 kg)
• CPU: Dual Core x86
• System Memory: 4 GB
• System Flash: 8 GB
• Packet Buffer: 8 MB
• System Power (Typ/Max): 67W / 90W (excluding PoE)
• Fans: 3 × FAN-7000-F/R (N+1 redundant, field-replaceable)
• Maximum Power Supplies: 2
• Management: 1 × 100M/1G management port, 1 × RS-232 console port, 1 × USB port
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• EOS License Group: G2
• Minimum EOS: 4.23.1

Compliance and Sustainability

• RoHS and WEEE compliant — energy-efficient design contributes to lower power per gigabit
• Safety: IEC/EN/CSA/UL 62368-1 certified
• EMC: FCC Class A, CE, VCCI, BSMI, KCC, ICES-003
• Global certifications: FCC, CE, UKCA, RCM, KCC, VCCI, BSMI, TEC, ANATEL, ICASA, NOM
• Compact 1RU form factor maximizes port density in space-constrained campus closets

Security Features

• 802.1X Enhancements: Multi-host authentication, MAC-based authentication (MAB), dynamic VLAN assignment
• TACACS+/RADIUS/RadSec for centralized authentication and accounting
• Ingress/Egress ACLs using L2, L3, and L4 fields with logging and counters
• Control Plane Protection (CPP) to protect the switch CPU from volumetric attacks
• MSS-G and MSS (multi-domain) for macro-segmentation services
• NDR switch sensor for network detection and response integration
• DHCP Relay, ARP trapping and rate limiting, MAC access list security

Deployment Scenarios and Industry Applications

• Small Wiring Closets and Branch Offices: The primary use case for the 24Y6 — full Cognitive Campus capability in a cost-effective 24-port GbE form factor for locations that don’t need 48 ports or multi-gigabit speeds but do need enterprise-class features and 25G uplinks.
• VoIP and Desktop Connectivity: 24 ports of 802.3af/at PoE power IP phones and desktops at every desk, with dynamic VLAN assignment separating voice and data traffic automatically via 802.1X.
• Retail Locations: A right-sized switch for individual store locations — PoE-powered point-of-sale devices, digital signage, security cameras, and WiFi access points managed through CloudVision alongside the rest of the enterprise campus.
• Video Surveillance and Physical Security: 802.3af/at PoE powers fixed IP cameras while Persistent PoE maintains power during switch reboots — critical for mission-critical security infrastructure in satellite locations.
• Healthcare Clinics and Satellite Offices: 802.1X authentication and VXLAN segmentation isolate medical devices and patient networks from administrative systems, with the same security and telemetry capabilities as the main campus.
• IoT and Smart Building: FlowTracker device fingerprinting identifies and segments IoT devices automatically, while VRF segmentation isolates building automation controllers, badge readers, and environmental sensors from corporate traffic.

Optics, Cables, and Interoperability

• 25G SFP28: 25GBASE-SR, LR, CR DACs, AOCs, and 10G/25G multi-rate optics for mixed-speed environments
• 10G SFP+: 10GBASE-SR, LR, ER, ZR, T, DACs, and AOCs for backward-compatible connectivity
• 1G SFP: 100Mb TX, 1GbE SX/LX/TX for legacy uplink connections

Scalability

• MAC Addresses: Up to 112K (Mode 0)
• IPv4 Host Routes: Up to 96K (Mode 3)
• IPv4 LPM Routes: Up to 144K (Mode 4)
• IPv6 LPM Routes: Up to 72K (Mode 4)
• VXLAN Overlay Networks: Up to 16.7 million
• 802.1Q VLANs: 4,096
• Security ACL Entries: 2.5K ingress / 1K egress

Lifecycle, Reliability, and Future-Proofing

Similar Arista 720XP Models to Consider

• Arista CCS-720XP-48Y6-F – 48-port 1GbE PoE with 6 × 25G uplinks. The step-up when 24 access ports aren’t enough — same GbE access speed and uplink configuration in a higher-density package.
• Arista CCS-720XP-24ZY4-F – 24-port mGig (16 × 2.5G + 8 × 5G) PoE with 4 × 25G uplinks. The upgrade path when access points or devices require multi-gigabit speeds beyond 1GbE and 60W 802.3bt PoE in the same 24-port form factor.
• Arista CCS-720XP-48ZC2-F – 48-port mGig PoE with 4 × 25G + 2 × 100G uplinks. The higher-density, multi-gigabit option for larger closets requiring both more ports and faster access speeds.

Related 720XP Resources

The Cost-Effective Campus Access Switch for Smaller Locations with Enterprise-Class Intelligence

CCS-720XP-24Y6-F Specifications

Ports and Interfaces

• Access Ports: 24 × 10/100M-1GbE RJ45
• Uplink Ports: 6 × 1G/10G/25G SFP28
• Management Port: 1 × 100M/1G RJ45
• Console Port: 1 × RS-232 serial
• USB Port: 1 × USB

Performance

• Switching Capacity: 174 Gbps (348 Gbps full-duplex)
• Forwarding Rate: 259 Mpps
• Latency (RJ-45): 1.2 µs cut-through
• Packet Buffer: 8 MB

Power over Ethernet (PoE)

• PoE Standard: 802.3af/at (up to 30W per port)
• PoE Ports: 24
• Default PoE Budget (1 × 650W AC): 583W typical / 560W minimum
• Dual 650W AC PoE Budget: 1,136W typical / 1,113W minimum
• Dual 1050W AC PoE Budget: 1,876W typical / 1,853W minimum
• Dual 500W DC PoE Budget: 883W typical / 860W minimum
• Dual 700W DC PoE Budget: 1,228W typical / 1,205W minimum

System Hardware

• CPU: Dual Core x86
• System Memory: 4 GB
• System Flash: 8 GB

Power and Cooling

• System Power (excluding PoE): 67W typical / 90W maximum
• Default Power Supply: 1 × 650W AC
• Maximum Power Supplies: 2 (N+1 redundant)
• Supported Power Supplies: PWR-621-AC (650W), PWR-1021-AC (1050W), PWR-521-DC (500W), PWR-721-DC (700W)
• Airflow: Front-to-rear (forward) or rear-to-front (reverse)
• Fans: 3 × FAN-7000-F/R (N+1 redundant, field-replaceable)

Physical Dimensions

• Form Factor: 1RU
• Dimensions (W × H × D): 17.3 × 1.75 × 12.5 inches (44.0 × 4.4 × 31.75 cm)
• Weight: 13.3 lbs (6 kg)

Table Scale (Configurable Modes)

• MAC Addresses: 16K – 112K (Mode 4 – Mode 0)
• IPv4 Host Routes: 16K – 96K (Mode 0 – Mode 3)
• IPv4 LPM Routes: 16K – 144K (Mode 0–3 – Mode 4)
• IPv6 LPM Routes: 8K – 72K (Mode 0–3 – Mode 4)
• IGMP Groups: 4K
• IPv4 Multicast Groups: 8K
• Security ACL Entries (Ingress/Egress): 2.5K / 1K
• 802.1Q VLANs: 4,096
• VXLAN Networks: 16.7 million

Environmental

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Relative Humidity: 5% to 90% (non-condensing)
• Operating Altitude: 0 to 10,000 ft (0 – 3,000 m)

Compliance and Certifications

• Safety: IEC-62368-1, EN 62368-1, CSA/UL 62368-1, AS/NZS 62368.1
• EMC: FCC Class A, EN 55032, VCCI-CISPR 32, AS/NZS CISPR 32, KS C 9832, ICES-003, EN 300 386
• Certifications: FCC (US), CE (EU), UKCA (UK), BSMI (Taiwan), KCC (South Korea), VCCI (Japan), RCM (Australia/NZ), TEC (India), ANATEL (Brazil), ICASA (South Africa), NOM (Mexico), NRTL (North America)
• EU Directives: 2014/35/EU Low Voltage, 2014/30/EU EMC, 2012/19/EU WEEE, 2011/65/EU RoHS

Warranty

• Hardware Warranty: 1-year limited; covers parts, repair, or replacement with 10-business-day turnaround
